| 角式放料阀 |
 |
|
| 产品描述 |
|
|
除了生产平底放料阀和管接放料阀外，本公司还设计、生产的角式放料阀。角式放料阀使用方便，便于维修和更换内件，在产生结疤的情况下，更容易去除结疤，保证阀门启闭效果。深受国内氧化铝生产厂家好评。

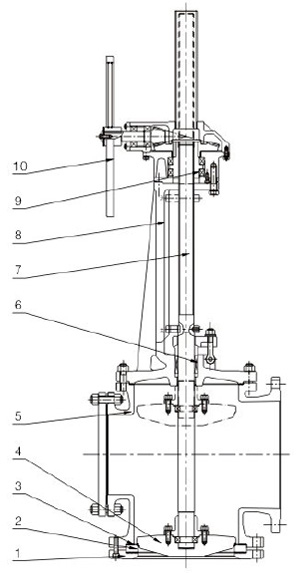

| 序号No. |
零件名称Accessory name |
材质Material |
| 1 |
放料口Flange |
ASTM A105 |
| 2 |
阀座Seat |
ASTM A105+STL（YG） |
| 3 |
垫片Gasket |
柔性石墨+不锈钢Flexible graphite+stainless steel |
| 4 |
阀瓣Disc |
ASTM A105+STL（YG） |
| 5 |
阀体Body |
ASTM A216-WCB |
| 6 |
填料Packing |
柔性石墨Flexible Graphite |
| 7 |
阀杆Stem |
ASTM A276-420 |
| 8 |
阀盖Bonnet |
ASTM A216-WCB |
| 9 |
阀杆螺母Stem nut |
B150 C61900 |
| 10 |
手轮Hand wheel |
FCD450 |

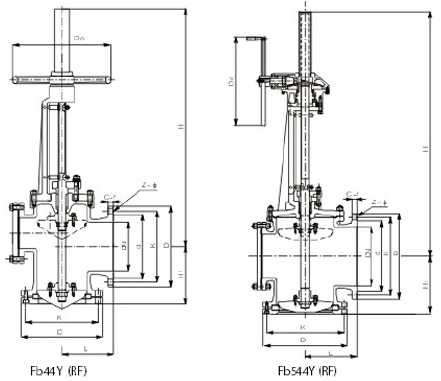

| DN/规格Specification |
D |
K |
Z-Φ |
d |
C-f |
D0 |
H |
| mm |
in |
手动Manual |
齿轮Gear |
| Fb44/544Y-10C(RF) |
| 80 |
3 |
200 |
160 |
8-18 |
132 |
20-2 |
250 |
700 |
|
| 100 |
4 |
220 |
180 |
8-18 |
156 |
22-2 |
300 |
700 |
|
| 125 |
5 |
250 |
210 |
8-18 |
184 |
22-2 |
350 |
730 |
|
| 150 |
6 |
285 |
240 |
8-22 |
211 |
24-2 |
400 |
880 |
|
| 200 |
8 |
340 |
295 |
8-22 |
266 |
24-2 |
400 |
970 |
990 |
| 250 |
10 |
395 |
350 |
12-22 |
319 |
26-2 |
450 |
1120 |
|
| 300 |
12 |
445 |
400 |
12-22 |
370 |
26-2 |
500 |
1230 |
1725 |
| 350 |
14 |
505 |
460 |
16-22 |
429 |
26-2 |
500 |
|
1880 |
| 400 |
16 |
565 |
515 |
16-26 |
480 |
26-2 |
600 |
|
2045 |
| 450 |
18 |
615 |
565 |
20-26 |
530 |
28-2 |
600 |
|
2140 |
| 500 |
20 |
670 |
620 |
20-26 |
582 |
28-2 |
700 |
|
2210 |
| 600 |
24 |
780 |
725 |
20-30 |
682 |
34-2 |
700 |
|
2325 |
| Fb44/544Y-16C(RF) |
| 80 |
3 |
200 |
160 |
8-18 |
132 |
20-2 |
250 |
700 |
|
| 100 |
4 |
220 |
180 |
8-18 |
156 |
22-2 |
300 |
775 |
|
| 125 |
5 |
250 |
210 |
8-18 |
184 |
22-2 |
350 |
700 |
|
| 150 |
6 |
285 |
240 |
8-22 |
211 |
24-2 |
400 |
730 |
|
| 200 |
8 |
340 |
295 |
12-22 |
266 |
24-2 |
400 |
970 |
990 |
| 250 |
10 |
405 |
355 |
12-26 |
319 |
26-2 |
450 |
1120 |
|
| 300 |
12 |
460 |
410 |
12-26 |
370 |
28-2 |
500 |
1230 |
1725 |
| 350 |
14 |
520 |
470 |
16-26 |
429 |
30-2 |
500 |
|
1880 |
| 400 |
16 |
580 |
525 |
16-30 |
480 |
32-2 |
600 |
|
2045 |
| 450 |
18 |
640 |
585 |
20-30 |
548 |
40-2 |
600 |
|
2140 |
| 500 |
20 |
715 |
650 |
20-33 |
609 |
44-2 |
700 |
|
2210 |
| 600 |
24 |
840 |
770 |
20-36 |
720 |
54-2 |
700 |
|
2325 |
| Fb44/544Y-20(150lb)(RF) |
| 80 |
3 |
190 |
152.5 |
4-18 |
127 |
19.5-2 |
250 |
700 |
|
| 100 |
4 |
230 |
190.5 |
8-18 |
157.5 |
22-2 |
300 |
700 |
|
| 125 |
5 |
255 |
216 |
8-22 |
186 |
24-2 |
350 |
730 |
|
| 150 |
6 |
280 |
241.5 |
8-22 |
216 |
25.5-2 |
400 |
880 |
|
| 200 |
8 |
345 |
298.5 |
12-22 |
270 |
29-2 |
400 |
970 |
990 |
| 250 |
10 |
405 |
362 |
12-26 |
324 |
30-2 |
450 |
1120 |
|
| 300 |
12 |
485 |
432 |
12-26 |
381 |
32-2 |
500 |
1230 |
1725 |
| 350 |
14 |
535 |
476 |
12-29.5 |
413 |
35-2 |
500 |
|
1880 |
| 400 |
16 |
600 |
540 |
16-29.5 |
470 |
37-2 |
600 |
|
2045 |
| 450 |
18 |
635 |
578 |
16-32.5 |
533.5 |
40-2 |
600 |
|
2140 |
| 500 |
20 |
700 |
635 |
20-32.5 |
584.5 |
43-2 |
700 |
|
2210 |
| 600 |
24 |
815 |
749.5 |
20-35.5 |
692.5 |
48-2 |
700 |
|
2325 |
|
|
|
|
|
| |
| |
|
