| 管接放料阀 |
 |
|
| 产品描述 |
|
|
我公司生产的放料阀有平底放料阀和管接放料阀，阀座用螺栓连接的放料法兰夹装，易于维护阀门、更换阀座。阀体内腔设计成抗结疤、流阻小的流线型通道。能在固体颗粒状介质工况条件下做到耐冲刷、耐腐蚀、防结疤。
从全国各大氧化铝厂的实际使用证实，公司的放料阀是国内氧化铝生产工艺管路用理想的阀门。
安装位置：管道上

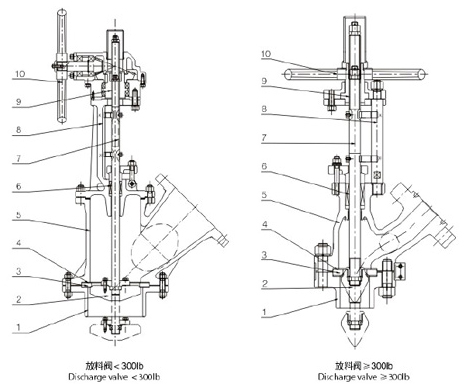

放料阀＜300lb Discharge valve ＜300lb
| 序号No. |
零件名称Accessory name |
材质Material |
| 1 |
放料口Flange |
ASTM A216-WCB |
| 2 |
阀瓣Disc |
ASTM A105+STL |
| 3 |
阀座Seat |
ASTM A105+STL |
| 4 |
垫片Gasket |
柔性石墨+不锈钢Flexible graphite+stainless steel |
| 5 |
阀体Body |
ASTM A216-WCB |
| 6 |
填料Packing |
柔性石墨Flexible Graphite |
| 7 |
阀杆Stem |
ASTM A276-420 |
| 8 |
阀盖Bonnet |
ASTM A216-WCB |
| 9 |
阀杆螺母Stem nut |
B150 C61900 |
| 10 |
手轮Hand wheel |
FCD450 |
放料阀≥300lb Discharge valve ≥300lb
| 序号No. |
零件名称Accessory name |
材质Material |
| 1 |
放料口Flange |
ASTM A216-WCB |
| 2 |
阀瓣Disc |
ASTM A105+STL（YG） |
| 3 |
阀座Seat |
ASTM A105+STL（YG） |
| 4 |
垫片Gasket |
柔性石墨+不锈钢Flexible graphite+stainless steel |
| 5 |
阀体Body |
ASTM A216-WCB |
| 6 |
填料Packing |
柔性石墨Flexible Graphite |
| 7 |
阀杆Stem |
ASTM A276-420 |
| 8 |
立柱Column |
ASTM A276-420 |
| 9 |
阀杆螺母Stem nut |
B150 C61900 |
| 10 |
手轮Hand wheel |
FCD450 |

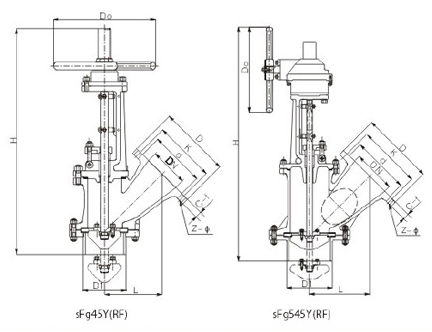

| DN/规格Specification |
D |
K |
Z-Φ |
d |
C-f |
D1 |
D0 |
电动装置
Electrical installations |
H |
| mm |
in |
手动Manual |
齿轮Gear |
电动Electrical |
| sFg45/545/945Y-10C(RF) |
| 50 |
2 |
165 |
125 |
4-18 |
99 |
20-2 |
60 |
250 |
|
505 |
|
|
| 65 |
3/2 |
185 |
145 |
4-18 |
118 |
20-2 |
|
250 |
|
555 |
|
|
| 80 |
3 |
200 |
160 |
8-18 |
132 |
20-2 |
89 |
250 |
|
600 |
|
|
| 100 |
4 |
220 |
180 |
8-18 |
156 |
22-2 |
114 |
300 |
|
630 |
|
|
| 125 |
5 |
250 |
210 |
8-18 |
184 |
22-2 |
|
350 |
|
740 |
|
|
| 150 |
6 |
285 |
240 |
8-22 |
211 |
24-2 |
159 |
400 |
|
885 |
|
|
| 200 |
8 |
340 |
295 |
8-22 |
266 |
24-2 |
215 |
400 |
|
|
|
|
| 250 |
10 |
395 |
350 |
12-22 |
319 |
26-2 |
|
450 |
|
|
1300 |
|
| sFg45/545/945Y-16C(RF) |
| 50 |
2 |
165 |
125 |
4-18 |
99 |
20-2 |
60 |
250 |
|
505 |
|
|
| 65 |
3/2 |
185 |
145 |
4-18 |
118 |
20-2 |
|
250 |
|
555 |
|
|
| 80 |
3 |
200 |
160 |
8-18 |
132 |
20-2 |
89 |
250 |
|
600 |
|
|
| 100 |
4 |
220 |
180 |
8-18 |
156 |
22-2 |
114 |
300 |
|
630 |
|
|
| 125 |
5 |
250 |
210 |
8-18 |
184 |
22-2 |
|
350 |
|
740 |
|
|
| 150 |
6 |
285 |
240 |
8-22 |
211 |
24-2 |
159 |
400 |
|
885 |
|
|
| 200 |
8 |
340 |
295 |
12-22 |
266 |
26-2 |
215 |
400 |
|
|
1030 |
|
| 250 |
10 |
405 |
355 |
12-26 |
319 |
28-2 |
|
450 |
|
|
1300 |
|
| sFg45/545/945Y-20(150lb)(RF) |
| 50 |
2 |
150 |
120.5 |
4-18 |
92 |
16-2 |
60 |
250 |
|
505 |
|
|
| 65 |
3/2 |
180 |
139.5 |
4-18 |
105 |
17.5-2 |
|
250 |
|
555 |
|
|
| 80 |
3 |
190 |
152.5 |
4-18 |
127 |
19.5-2 |
89 |
250 |
|
600 |
|
|
| 100 |
4 |
230 |
190.5 |
8-18 |
157.5 |
24-2 |
114 |
300 |
|
630 |
|
|
| 125 |
5 |
255 |
216 |
8-22 |
186 |
24-2 |
|
350 |
|
740 |
|
|
| 150 |
6 |
280 |
241.5 |
8-22 |
216 |
25.5-2 |
159 |
400 |
|
885 |
|
|
| 200 |
8 |
345 |
298.5 |
8-22 |
270 |
29-2 |
215 |
400 |
|
|
1030 |
|
| 250 |
10 |
405 |
362 |
12-26 |
324 |
30.5-2 |
|
450 |
|
|
1300 |
|
| sFg45/545/945Y-25(RF) |
| 50 |
2 |
165 |
125 |
4-18 |
99 |
20-2 |
60 |
250 |
|
505 |
|
|
| 65 |
3/2 |
185 |
145 |
8-18 |
118 |
22-2 |
|
250 |
|
555 |
|
|
| 80 |
3 |
200 |
160 |
8-18 |
132 |
24-2 |
89 |
250 |
|
600 |
|
|
| 100 |
4 |
235 |
190 |
8-22 |
156 |
24-2 |
114 |
300 |
|
630 |
|
|
| 125 |
5 |
270 |
220 |
8-26 |
184 |
26-2 |
|
350 |
ZB15 |
740 |
|
|
| 150 |
6 |
300 |
250 |
8-26 |
211 |
28-2 |
159 |
400 |
ZB20 |
885 |
|
|
| 200 |
8 |
360 |
310 |
12-26 |
274 |
30-2 |
215 |
400 |
ZB20 |
|
1030 |
|
| 250 |
10 |
425 |
370 |
12-30 |
330 |
32-2 |
|
450 |
ZB45 |
|
1300 |
|

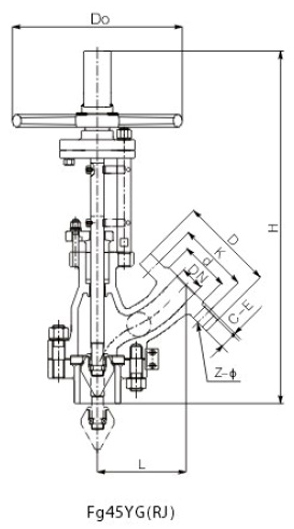

| DN/规格Specification |
D |
K |
Z-Φ |
d |
p |
C-E |
D0 |
电动装置
Electrical installations |
H |
| mm |
in |
手动Manual |
齿轮Gear |
电动Electrical |
| Fg45/545/945YG-50(300lb)(RJ) |
| 50 |
2 |
165 |
125 |
4-18 |
99 |
82.55 |
22.5-7.92 |
300 |
|
|
|
|
| 65 |
3/2 |
185 |
145 |
4-18 |
118 |
101.60 |
25.5-7.92 |
350 |
|
|
|
|
| 80 |
3 |
200 |
160 |
8-18 |
132 |
12.82 |
29-7.92 |
400 |
|
|
|
|
| 100 |
4 |
220 |
180 |
8-18 |
156 |
149.22 |
32-7.92 |
400 |
|
870 |
|
|
| 125 |
5 |
250 |
210 |
8-18 |
184 |
180.98 |
35-7.92 |
450 |
|
|
|
|
| 150 |
6 |
285 |
240 |
8-22 |
211 |
211.12 |
37-7.92 |
500 |
|
|
|
|
| 200 |
8 |
340 |
295 |
8-22 |
266 |
269.88 |
41-7.92 |
600 |
ZB2TD30 |
|
|
980 |
| 250 |
10 |
395 |
350 |
12-22 |
319 |
323.85 |
48-7.92 |
600 |
|
|
|
|
| Fg45/545/944YG-63(RJ) |
| 50 |
2 |
180 |
135 |
4-22 |
116 |
85 |
26-8 |
300 |
|
680 |
|
|
| 65 |
5/2 |
205 |
160 |
8-22 |
140 |
110 |
26-8 |
350 |
|
|
|
|
| 80 |
3 |
215 |
170 |
8-22 |
150 |
115 |
28-8 |
400 |
|
|
|
|
| 100 |
4 |
250 |
200 |
8-26 |
176 |
145 |
30-8 |
400 |
|
|
|
|
| 125 |
5 |
295 |
240 |
8-30 |
212 |
175 |
34-8 |
450 |
|
|
|
|
| 150 |
6 |
345 |
280 |
8-33 |
250 |
205 |
36-8 |
500 |
|
|
|
|
| 200 |
8 |
415 |
345 |
12-36 |
312 |
265 |
42-8 |
600 |
|
|
|
|
| Fg45/545/944YG-110(600lb)(RJ) |
| 50 |
2 |
165 |
127 |
8-18 |
108 |
82.55 |
25.5-7.92 |
400 |
ZB15 |
450 |
650 |
650 |
| 65 |
5/2 |
190 |
149 |
8-22 |
127 |
101.6 |
29-7.92 |
450 |
|
|
|
|
| 80 |
3 |
230 |
180 |
8-26 |
150 |
115 |
32-7.92 |
450 |
|
508 |
|
|
| 100 |
4 |
265 |
210 |
8-30 |
176 |
145 |
38.5-7.92 |
500 |
|
682 |
|
|
| 125 |
5 |
315 |
250 |
8-33 |
212 |
175 |
44.5-7.92 |
500 |
|
|
|
|
| 150 |
6 |
355 |
290 |
12-33 |
250 |
205 |
48.0-7.92 |
600 |
ZC120 |
700 |
900 |
900 |
| 200 |
8 |
430 |
360 |
12-36 |
312 |
265 |
55.5-7.92 |
700 |
|
|
|
|
| Fg45/545/944YG-160(RJ) |
| 50 |
2 |
165 |
127 |
8-18 |
108 |
82.55 |
22.5-8 |
400 |
|
737 |
|
|
| 65 |
5/2 |
190 |
149 |
8-22 |
127 |
101.6 |
25.5-8 |
450 |
|
|
|
|
| 80 |
3 |
230 |
180 |
8-26 |
152 |
130 |
46-8 |
450 |
|
|
|
|
| 100 |
4 |
265 |
210 |
8-30 |
178 |
160 |
52-8 |
500 |
|
|
945 |
|
| 125 |
5 |
315 |
250 |
8-33 |
215 |
190 |
56-8 |
500 |
|
850 |
880 |
|
| 150 |
6 |
355 |
290 |
12-33 |
255 |
205 |
62-10 |
600 |
Zc120 |
900 |
930 |
950 |
| 200 |
8 |
430 |
360 |
12-36 |
322 |
275 |
66-11 |
700 |
|
|
|
|
|
|
|
|
|
| |
| |
|
